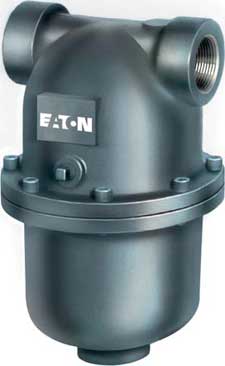

Eaton Gas/Liquid Separators

Type T Cast Construction, Sizes 3/4˝ to 4˝ • Iron, Carbon Steel or Stainless Steel • Threaded, Flanged or Socket Weld

High Efficiency – No Maintenance

The Eaton Type T Gas/Liquid Separator automatically removes 99% of all liquid and solid entrainment particles 10 microns in size or larger from air, gas, and steam processes. And they do it with no moving parts to wear out and with no required maintenance. The Type T, with its cost effective design, is the separator of choice for most applications that require clean, dry air, gas or steam.

Application Flexibility

The basic Type T Gas/Liquid Separator’s straight forward, time proven design fits most applications without options. For more specialized applications the Type T is available as the Type ST with an integral trap as part of its design. The trap mechanism is a fool-proof design which automatically ejects the condensate, without loss of line pressure, when it reaches a predetermined level. The Type ST is compact, easily installed and can be supported by the line. Removal of the bottom flange releases the trap mechanism for inspection. The internal trap components are rust-proof stainless steel and include a nonmagnetic 18-8 stainless steel valve and seat. For applications below freezing the Type ST Separator can be ordered as the Type STH that includes a heater for the trap. The heater is rated at 50W and is for 110 volt service. The self limiting heating element will keep fluid above freezing and does not add to the line temperature. The heater can be easily removed for inspection.
