Typs TS, Vertical, 1˝ to 24˝ Sizes • Threaded, Flanged or Socket Weld • Carbon Steel or Stainless Steel

High Efficiency – No Maintenance

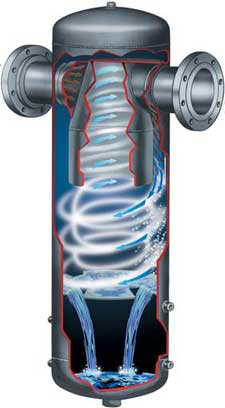

Eaton Type TS Gas/Liquid Separators automatically remove 99% of all liquid and solid entrainment particles 10 microns in size or larger from air, gas, and steam processes. And they do it with no moving parts to wear out and with no required maintenance.

Applications

The Eaton Type TS gas/liquid separator is designed for applications where heavier than normal liquid loading causes a “slugging” problem. These applications are widely found in refineries and chemical plants. In many cases, there is a liquid holdup requirement where instrumentation is provided for controlling the level of the liquid in the reservoir of the vessel. Some common applications include upstream of gas turbines, absorption towers, gas scrubbers and steam generator outlets.

Fabricated Construction

The Type TS Separator is available in fabricated carbon steel, stainless steel or other alloy construction with socket weld, threaded and both 150# and 300# flange connections. Depending on the separator size liquid holdup capacities range from .19 cu. ft. all the way up to 32.64 cu. ft. or larger should the application require. The separators can be furnished with an ASME Code Stamp as an option. Optional, integral support legs can also be specified.
