Type T Fabricated, Sizes 1˝ to 24˝ • Carbon Steel and Stainless Steel

High Efficiency – No Maintenance

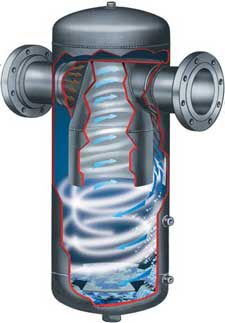

The Eaton Type T Gas/Liquid Separator automatically removes 99% of all liquid and solid entrainment particles 10 microns in size or larger from air, gas, and steam processes. And they do it with no moving parts to wear out and with no required maintenance. The Type T, with its cost effective design, is the separator of choice for most applications that require clean, dry air, gas or steam.

Application Flexibility

Fabricated separators, because they are manufactured one at a time, can be made to fit the exact requirements of unusual applications such as unique size or piping connections. They are also lighter in weight than a comparable size cast separator. There are no trade-offs with a fabricated separator. You get the perfect unit for your application…you never have to pay for more separator than you need…or settle for a separator that won’t quite do the job you want it to.

Choose Cast or Fabricated Construction

Fabricated Type T Gas /Liquid Separators are available in sizes from 1˝ up to 24˝ in carbon steel or cast stainless steel construction. Fabricated construction separators are built to order and can be easily manufactured to exactly meet the requirements of special application or applications where weight is a concern. For standard applications cast separators are often the best choice. See page 8 for Type T Gas/Liquid Separators in cast iron, carbon steel and stainless steel construction in sizes up to 4˝ with threaded, flanged or socket weld piping connections. Most standard cast separators are available for shipment from stock. Cast or fabricated Eaton Type T Gas/Liquid Separators let you choose the best one for your application.
